Products - Cuttable Flexible LED Panels
×

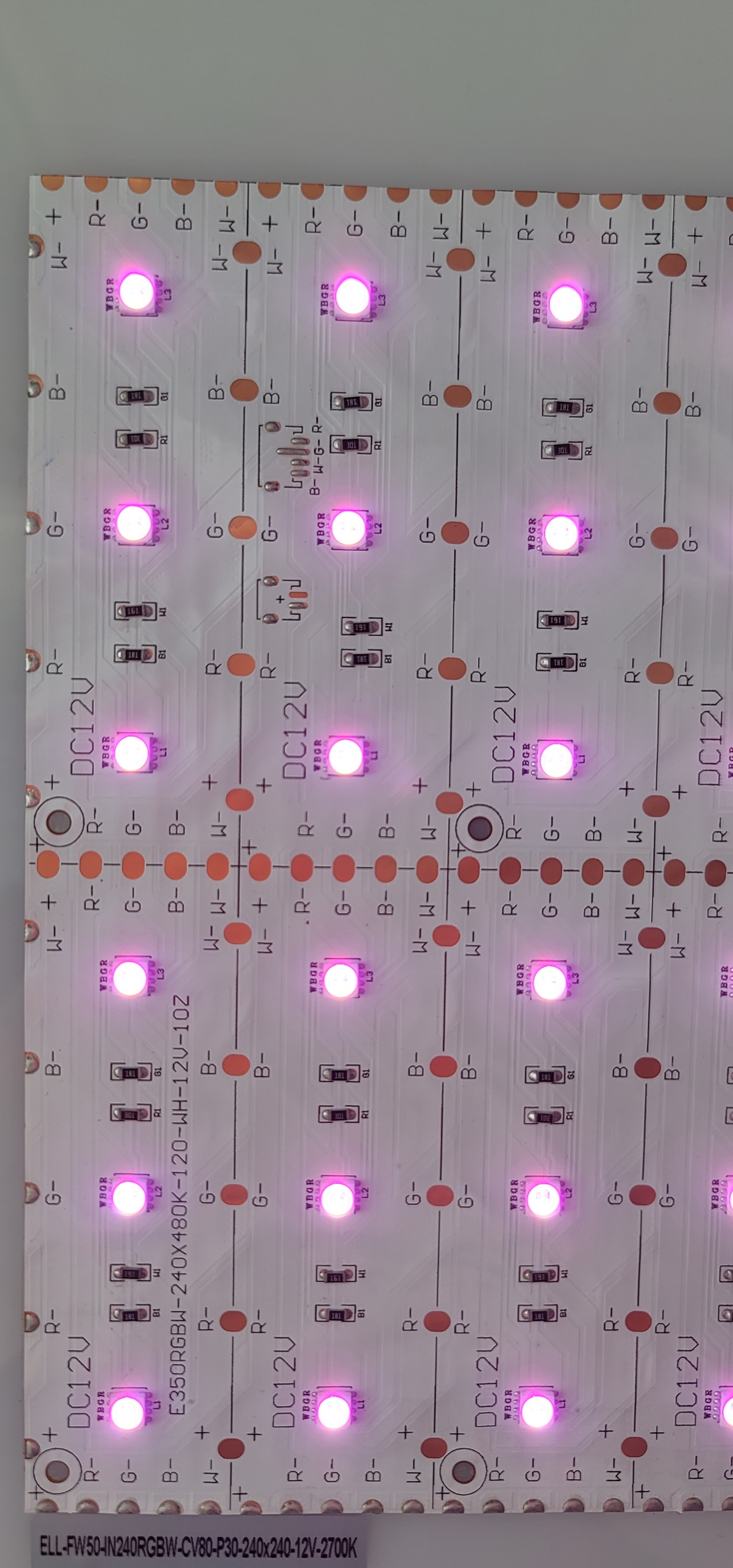

Cuttable Flexible RGBW-in-1 5050 LED Panel
ELL-FW50-IN240RGBW-CV80-P30-480x480-1oz-12V-CCT-T
a. LED Type :5050 RGBW-in-1 LED (max 80mA) Main R=620-630nm; G=515-525nm; B=464-474nm 1. FPC Size :480x480mm 2-layer 1+1oz copper PCB 2. FPC Design :240-LED/480x480mm; 30x96mm/cut ; P30 3. FPC Logo :As per eLumen design 4. Strip Packing :eLumen standard packing 5. Backing Tape :3M 9495 200MP (brown) tape 6. Wire / Plug :1m UL3239 AWG16 open end wire 7. IP + Detail :IP20 = indoor (IN) 8. Strip Input :Constant DC12V; ~70mA; ~67w/panel
ELL-FW50-IN240RGBW-CV80-P30-480x480-1oz-12V-CCT-T
Cuttable Flexible RGBW-in-1 5050 LED Panel
